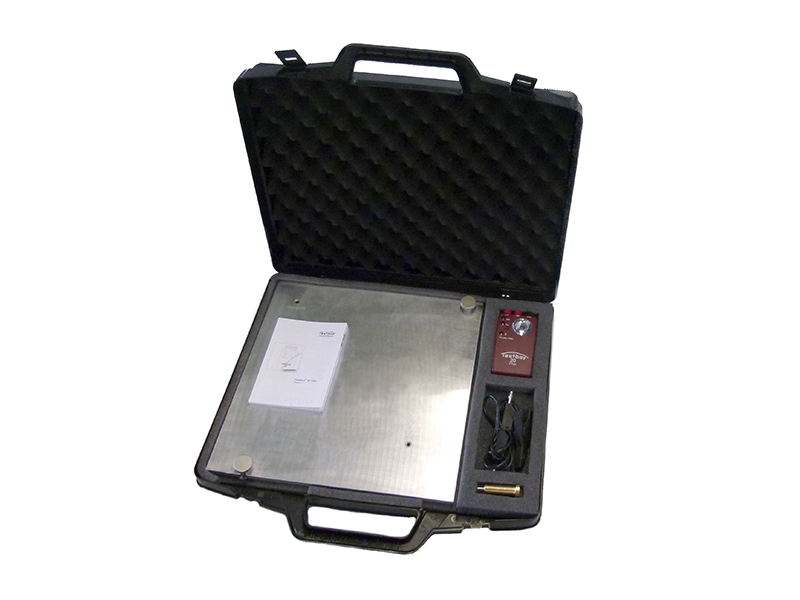

Adjustment set for welding heads
It consists of a calibrated socket, adjustment plate and continuity tester; for MPW and CPW stud welding machines.
| Continuity test | Optical 0 - 20 Ω Acoustic 0 - 250 Ω |
| Test voltage | 4.5 V |
| Test current | Optical ~ 10 mA Acoustics ~ 2 mA |
| Feeding | 3 x 1.5 V |
| Electrical rigidity | Up to 200 V |
| Category of overvoltage | CATII 300 V |
| Battery | 1.5 V, AA format (3x required) |
| L x W x H Dimensions | Continuity Tester: 120 x 60 x 30 mm Control plate: 320 x 320 x 10 mm Case: 450 x 420 x 100 mm |
| Weigth | Continuity Tester: 90 g (without battery) Adjustment plate: 2.8 kg Complete case: 5.2 kg |
| Order N° | 88-22-301 |
