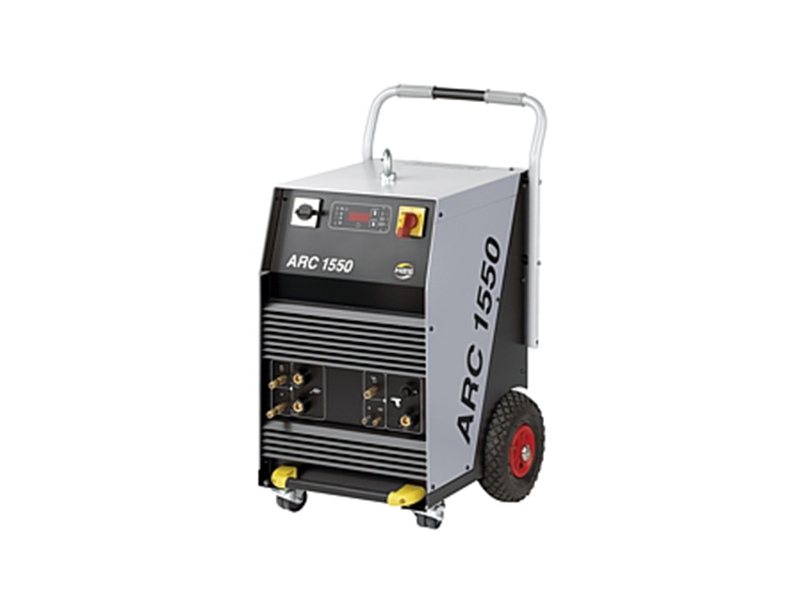

Welding machine
For ARC welding, in accordance with current regulations.
| Gas/Automation | Series/Option |
| Welding range | M3 to M20 RD, dia. 2 to 19 mm |
| Welding material | Mild steel, stainless steel |
| Welding rate | 3 to 35 studs/min (depending on application and stud dia.) |
| Welding current | 1,550 A |
| Current adjustment range | 500 to 1,550 A (500 A - 800 A – 1,000 A – 1,200 A – 1,550 A) |
| Welding time | 5 to 1,500 msec (stepless) |
| Primary power | 400 V, 3 phases, 50/60 Hz, 63 AT(alternative input voltages available) |
| Primary plug | 63 A (at 400 V mains) |
| Connected load | 40 KVA (at 400 V mains) |
| Power source | Transformer/Rectifier |
| Primary cable | 5 m, 6 mm² (max. cable length 30 m, 6 mm² at 400 V) |
| Max. welding cable extension | 20 m, 95 mm² |
| Cooling type | F (temperature controlled cooling fan) |
| Protection class | IP 23 |
| Operational and storage conditions | According to current standards |
| Dimension L x W x H | 460 x 400 x 730 mm (without handle) |
| Weight | 133 kg |
| Order N° | 93-10-1552 (Gas) 93-10-1554 (Gas/Automation) |
