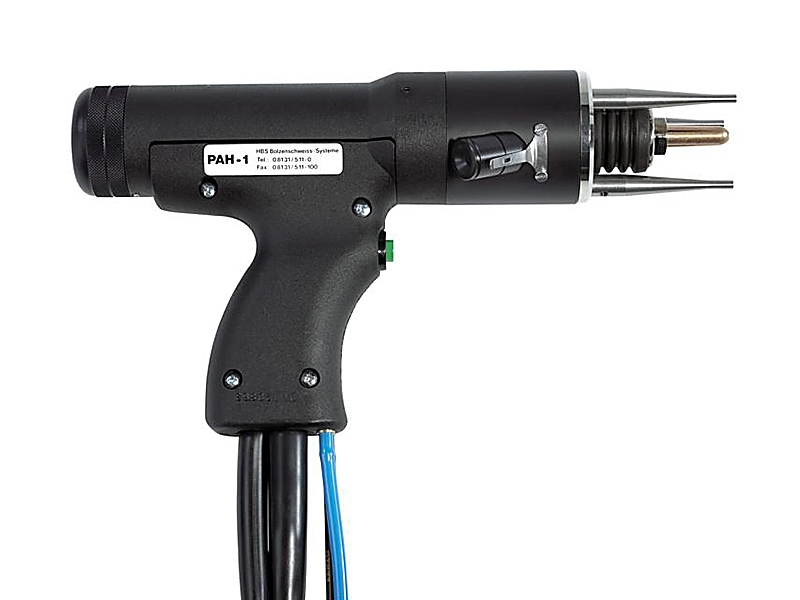

Welding gun
For CD or ARC welding with automatic feeding of the stud, in accordance with current regulations
.
| Welding range | M3 to M8, dia. 3 to 8 mm |
| Stud length | 8 to 30 mm |
| Stud material | Iron, stainless steel, aluminum, brass |
| Race | Adjustment range 5 mm |
| Cables | 3 m |
| Protection degree | IP 20 |
| Noise | > 90 dB (A) during welding |
| Operating and storage conditions | In accordance with current rules |
| L x W x H Dimensions | 295 x 60 x 170 mm (without cable) |
| Weigth | 1.4 kg (without cable) |
| Order N° | 94-20-015 |
