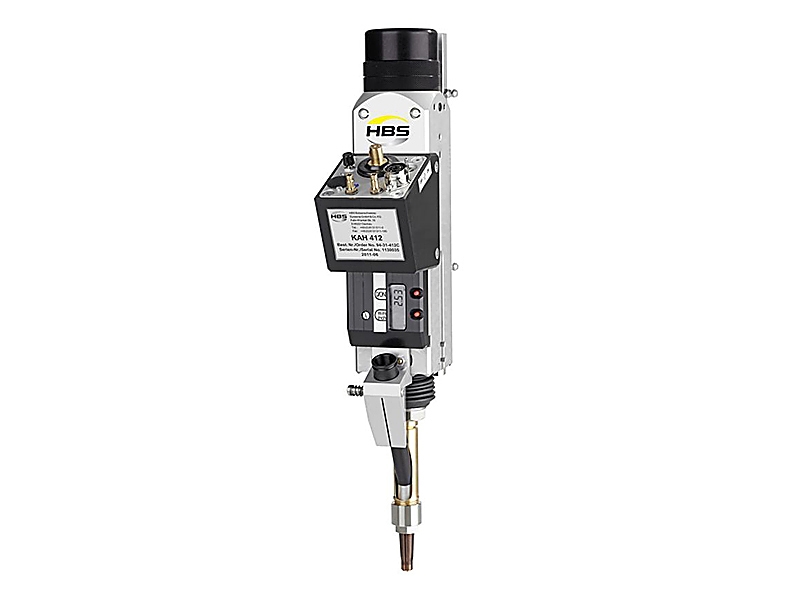

Automatic Welding Head with Digital Display
For ARC or CD welding with automatic feeding, in accordance with current regulations.
| Welding range | From M3 to M8, dia. 3 to 8 mm (dia. 10/12/12.7 mm with modifications only) |
| Stud length | 8 to 40 mm (standard - other lengths on request) |
| Stud material | Iron, stainless steel, aluminum, brass |
| Race | Adjustable range 5 mm, lockable |
| Pushing pressure | Lockable |
| Protection degree | IP 20 |
| Noise level | > 90 dB (A) during welding |
| L x W x H Dimensions | 375 x 66 x 145 mm (with caliper and quick release system) |
| Weigth | 3.4 kg |
| Order N° | 94-31-412C |
