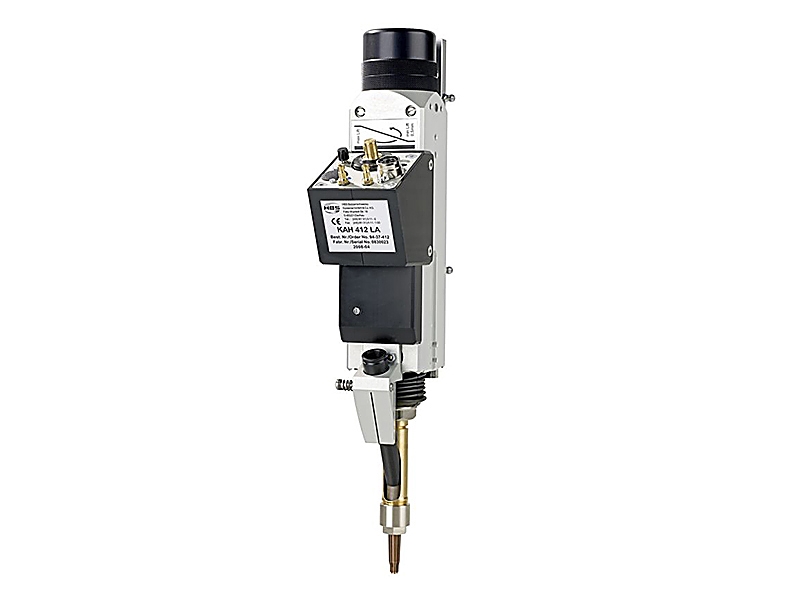

Automatic welding head with length compensation.
For ARC or CD welding with automatic feeding, in accordance with current regulations.
| Welding range | M3 to M8, dia. 3 to 8 mm (dia. 10/12/12.7 mm with modifications only) |
| Stud length | From 8 to 40 mm (standard - other lengths on request) |
| Stud material | Iron, stainless steel, aluminum, brass |
| Total stroke of the piston | 7 mm |
| Stroke/Length compensation | 5/2 mm, 4/3 mm |
| Pushing pressure | Lockable |
| Protection degree | IP 20 |
| Noise level | > 90 dB (A) during welding |
| Operating and storage conditions | In accordance with current rules |
| L x W x H Dimensions | 375 x 66 x 145 mm (with caliper and quick release system) |
| Weigth | 3.4 kg |
| Order N° | 94-37-412 (with length compensation) |
