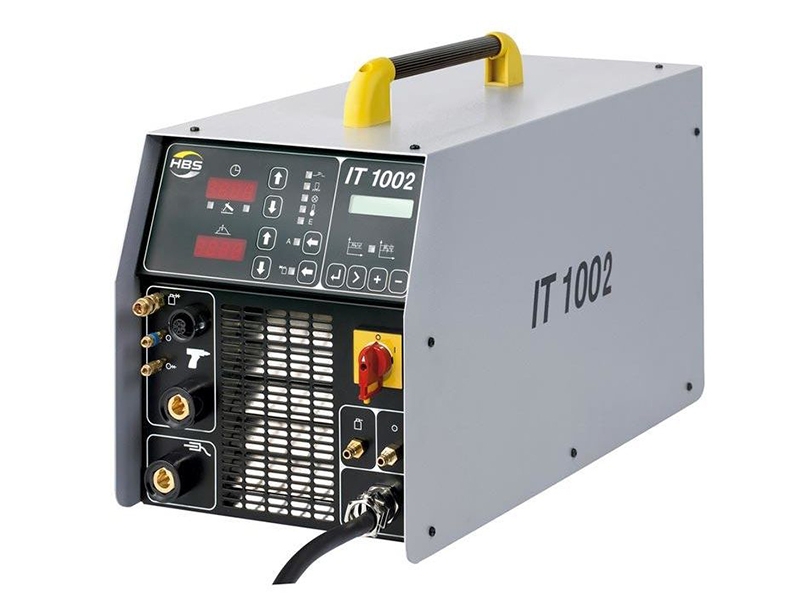

Welding machine
For ARC welding, in accordance with current regulations.
| Gas/Automation/Process control | Series/Option/Option |
| Welding range | M3 to MR16, dia. 2 to 14 mm |
| Welding material | Mild steel, stainless steel, aluminum |
| Welding rate | M12 = 25 studs/min |
| Welding current | 1,000 A (max.) |
| Current adjustment range | Stud welding 100 to 1,000 A, electrode 50 to 400 A (stepless) |
| Welding time | 5 to 1,000 msec (stepless) |
| Primary power | 400 V, 3 phases, 50/60 Hz, 35 AT (alternative input voltages available) |
| Primary plug | 32 A (with 400 V mains) |
| Connected load | 50 KVA (with 400 V mains) |
| Cooling type | F (temperature controlled cooling fan) |
| Protection class | IP 23 |
| Operational and storage conditions | According to current standards |
| Dimension L x W x H | 660 x 280 x 340 mm (without handle) |
| Weight | 29 kg |
| Order N° | 93-60-1202 (Gas) 93-60-1204 (Gas/Automation) 93-60-1206 (Gas/Automation/Process control) |
