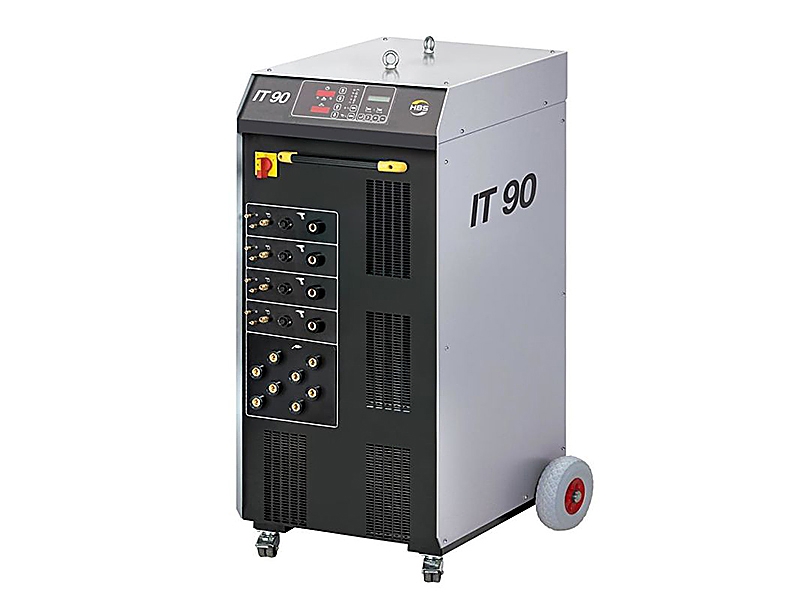

Welding machine
For ARC welding, in accordance with current regulations.
-
Contacts
+39 0423 724716 -
Email
info@tspsrl.net
Welding machine
For ARC welding, in accordance with current regulations.
| Gas/Automation/Process control | Series/Series/Series |
| Welding range | M3 to M24, dia. 2 to 22 mm |
| Welding material | Mild steel, stainless steel, aluminum |
| Welding rate | Dia. 22 = 6 studs/min |
| Welding current | 2,000 A (max.) |
| Current adjustment range | 300 to 2,000 A (stepless) |
| Welding time | 5 to 1,500 msec (stepless) |
| Primary power | 400 V, 3 phases, 50/60 Hz, 63 AT (alternative input voltages available) |
| Primary plug | 63 A (with 400 V mains) |
| Connected load | 100 KVA (with 400 V mains) |
| Cooling type | F (temperature controlled cooling fan) |
| Protection class | IP 23 |
| Operational and storage conditions | According to current standards |
| Dimension L x W x H | 650 x 560 x 1,290 mm (without handle) |
| Weight | 140 kg |
| Order N° | 93-60-12096 (Gas/Automation/Process control/1 Gun connection) 93-60-42096 (Gas/Automation/Process control/4 Gun connections) |
