| Welding range |
Nails with washers: d. 2 and 2,7 mm ISO CD nails: d. 2 and 3 mm |
| Weldable materials |
Steel, Stainless steel, aluminium |
| Weld frequency |
Nails with washer d. 2,7 = 20 nails/min (Charge voltage 85 V) ISO CD d.3 mm nails = 20 nails/min (Charging voltage 90 V) |
| Capacity |
100 000 µf |
| Welding time |
1 to 3 ms |
| Energy |
500 Ws |
| Load voltage |
50 to 100 V (with continuous adjustment) |
| Primary energy |
100 V to 240 V, 50/60 Hz, 10 AT |
| Battery |
25.55 V / 5.7 Ah / 145.64 Wh (Linicoalo2) (not included in delivery) |
| Number of welds possible with a charge Energy source |
400 welds with nails with washer d.2,7 mm |
| Energy source |
Condenser battery |
| Battery charging time |
Max. 2.5 h |
| Battery life |
At least 400 refill cycles (after 800 reloads, 60 % of the initial capacity remains) |
| Type of cooling |
F (temperature controlled by electric fan) |
| Degree of IP protection |
IP 44 (with battery inserted), IP 23 (without battery) |
| L x W x H Dimensions |
475 x 300 x 355 mm (18.70 |
| Weight |
12 kg (26.46 lbs) incl. battery, 10.7 kg (23.59 lbs) without battery |

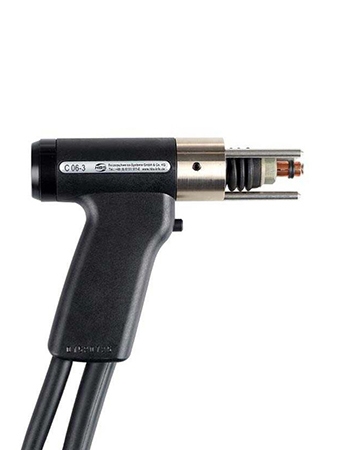

| Suitable welding gun |
CI 03, C 06-3 |
| Order N° |
92-10-0510 |
