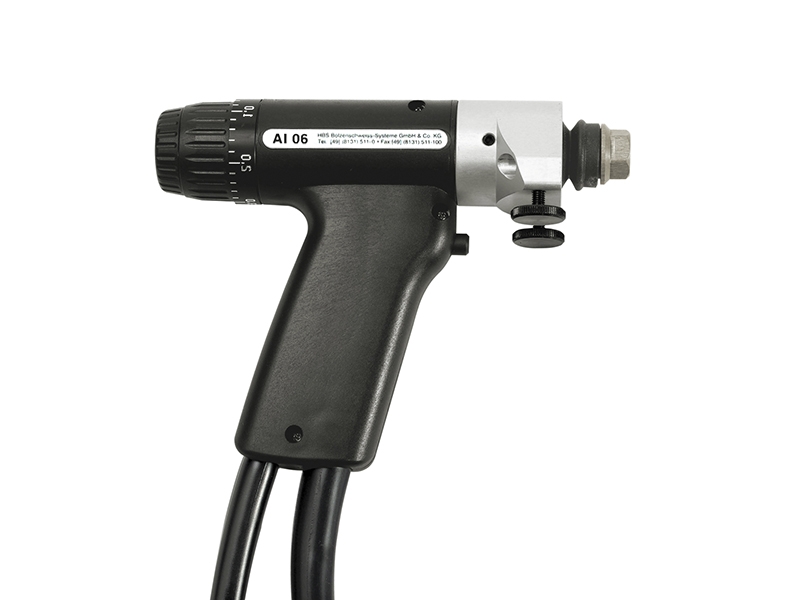

Stud welding gun (for isolation)
For ARC welding, in accordance with current regulations.
| Welding range | ARC-ISO pins dia. 3 to 6 mm |
| Stud length | 10 to 400 mm (depending on tripod) |
| Stud material | Mild steel, stainless steel |
| Stud type | ARC insulation pin, ARC fiberfix pin, ARC threaded stud, ARC pin |
| Length compensation | 3 mm automatic |
| Stroke | Adjustment range 3 mm, lockable |
| Spring pressure | Adjustable, arresting |
| Welding cable | 10 m |
| Insulation class | IP 20 |
| Workplace noise level | Up to 90 dB (A) may occur during welding |
| Operational and storage conditions | According to current standards |
| Dimension L x W x H | 180 x 65 x 140 mm (without cable, with foot piece) |
| Weight | 0.8 kg (without cable and tripod) |
| Order N° | 93-20-250 (gun including foot piece) 93-40-026 (tripod ISO with support tube) 93-40-066 (tripod ISO with support tube aluminum-teflon) |
