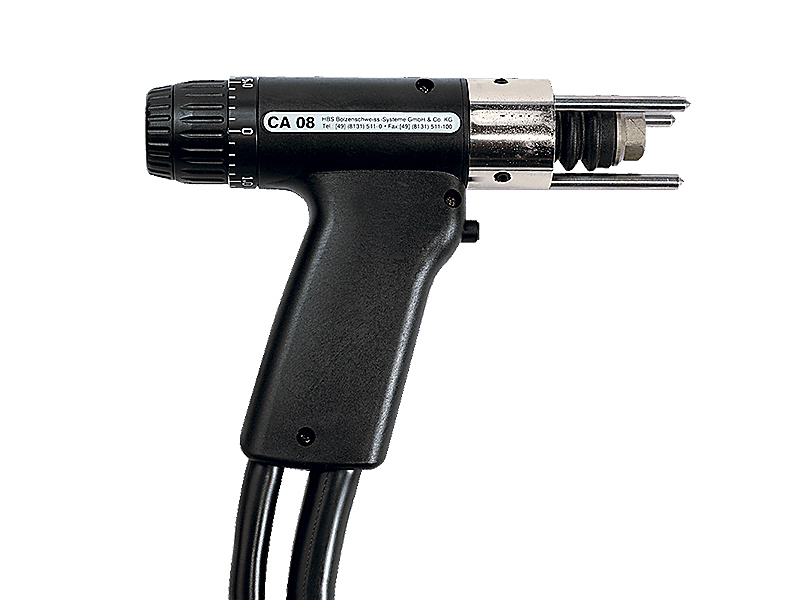

Stud welding gun
For CD and ARC welding, in accordance with current regulations.
| Welding range | M3 to M8, dia. 2 to 8 mm (other dimensions on request) |
| Stud length | 6 to 40 mm, longer studs can be welded with optional accessories |
| Stud material | Mild steel, stainless steel, aluminum, brass |
| Stud type | Any type or shape (special chucks if required) |
| Stroke | Adjustment range 4.5 mm, lockable |
| Spring pressure | Adjustable, arresting |
| Welding cable | 3 m |
| Insulation class | IP 20 |
| Workplace noise level | > 90 dB (A) may occur during welding |
| Operational and storage conditions | According to current standards |
| Dimension L x W x H | 190 x 40 x 140 mm (without cable) |
| Weight | 0.7 kg (without cable) |
| Order N° | 92-20-255 |
