| Welding range |
BH 100: dia. 2 to 8 mm, M3 to M10 (type RD) BH 10: dia. 2 to 6 mm, M3 to M6 |
| Welding material |
Mild steel, stainless steel |
| Welding rate |
M3 = 40 studs/min M8 = 12 studs/min |
| Welding current |
650 A (max.) |
| Adjustment range of the energy |
100 to 650 A |
| Welding time |
5 to 200 ms (stepless) |
| Primary power |
100 to 240 V, 1 phase, 50/60 Hz, 16 AT |
| Primary plug |
16 A 2-pin grounded safety plug (plug type F ; CEE 7/4) |
| Connected load |
3 kVA |
| Cooling type |
F (temperature controlled cooling fan) |
| IP Code |
IP 44 |
| Dimension L x W x H |
474 x 337 x 351 mm (with handle) |
| Weight |
18 kg |
| Suitable stud welding gun |
A 12, welding cable length 4.8 m (not possible to extend), (not included in delivery) |
| Order N° |

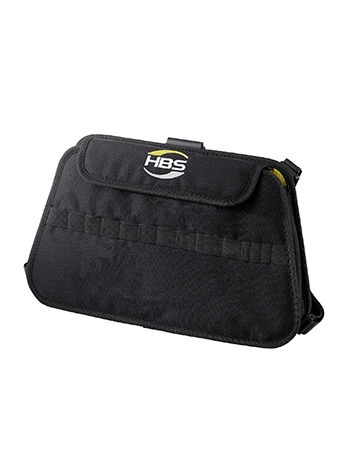

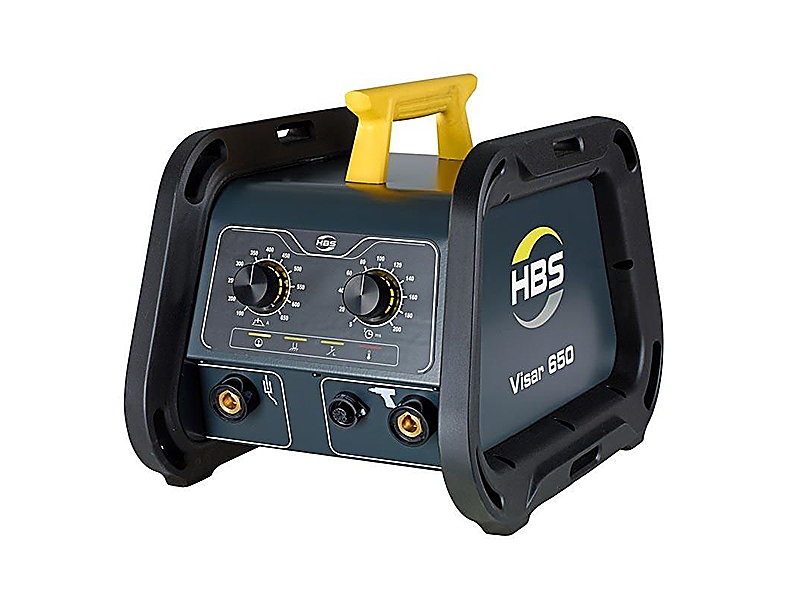

93-60-0650 (Visar 650) 93-40-020 (Ground cable) 93-20-270 (A 12 – Stud welding gun) 93-40-022 (PSC-1 – Ceramic leg assembly) 88-24-466 (Toolbag) |
