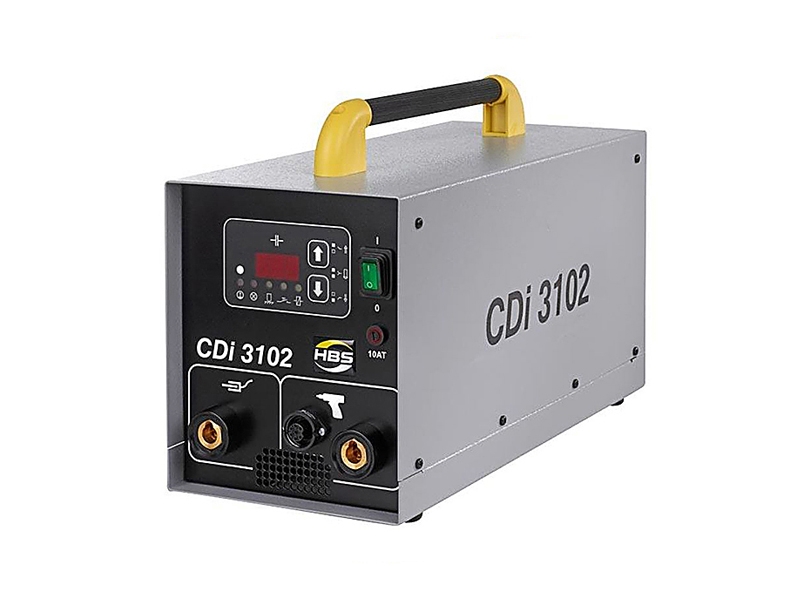

Welding machine with digital display
For welding CD studs (capacitor discharge), in accordance with current regulations.
| Welding range | M3 to M10, dia. 3 to 10 mm |
| Welding material | Mild steel, stainless steel, aluminium and brass |
| Welding rate | M3 = 20 studs/min. (Charging voltage 50 V) M8 = 10 studs/min. (Charging voltage 140 V) M10 = 6 studs/min. (Charging voltage 200 V) |
| Capacitance | 132,000 µF |
| Welding time | 1 to 3 msec |
| Energy | 3,200 Ws |
| Charging voltage | 50 to 220 V (stepless voltage regulation) |
| Primary power | 230 V, 50/60 Hz, 10 AT |
| Power source | Capacitor |
| Cooling type | F (temperature controlled cooling fan) |
| IP-code | IP 23 |
| Dimension L x W x H | 480 x 205 x 250 mm (without handle) |
| Weight | 18 kg |
| Order N° | 92-10-3102 |
