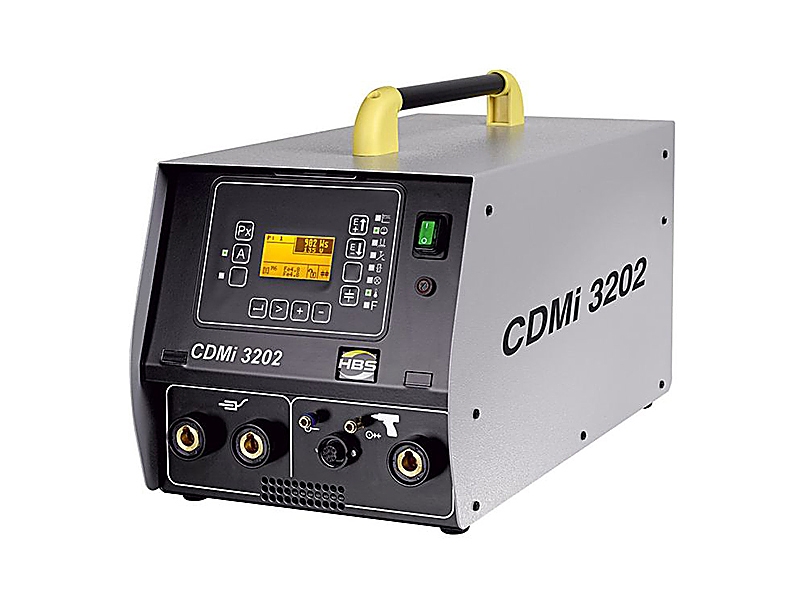

WELDING MACHINE
for welding studs (with capacitive discharge). In accordance with current regulations.
| Automation | Series |
| Welding range | M3 to M10, dia. 2 to 10 mm |
| Welding material | Mild steel, stainless steel, aluminium and brass |
| Welding rate | M3 = 43 studs/min. (Charging voltage 50 V) M8 = 25 studs/min. (Charging voltage 140 V) (M10 = 18 studs/min. (Charging voltage 200 V) |
| Capacitance | 132 000 µF/66 000 µF* |
| Welding time | 1 to 3 msec |
| Energy | 3 200 Ws/1 600 Ws* |
| Charging voltage | 50 to 220 V (stepless voltage regulation) |
| Primary power | 230 V, 50/60 Hz, 10 AT |
| Power source | Capacitor |
| Cooling type | F (temperature controlled cooling fan) |
| IP-Code | IP 21 |
| Dimension L x W x H | 570 x 285 x 290 mm (without handle) |
| Weight | 27 kg * with change over of capacitors |
| Order N° | 92-10-23212 (Automation) |
